IGS基準座標局 Kinematic PPP結果
IGS Reference Frame Stations Kinematic PPP Results		 2005/09/02 Return

GT PPPの精度評価のため、IGS基準座標局の座標をKinematic PPPを使って求め、IGb00 (ITRF2000) 座標と比較した。測位解は24H毎300秒間隔の観測データを使い2passのKinematic PPPを使用して求めた。
IGb00座標と比較した測位解のRMS誤差及びRepeatabilityは以下の通りであった。

IGS Reference Frame Station Kinematic PPP Accuracy
RMS Error Repeatability
East North Up East North Up
1.8cm 1.4cm 3.4cm 1.7cm 1.4cm 3.3cm
GPS Week 1291, Kinematic PPP, Avarage of All Stas, wrt IGb00


推定条件
Estimation Parameters

・Analysis Software : GT0.5.6
・Estimation Span : 2004/10/03-10/09
・Estimation Interval : 300sec
・Estimation Unit Time : 24H
・Estimation Pass : 2pass(Forward/Backward)+Smoothing
・Estimation Strategy : PPP
・Station Position Model : Kinematic
・Fixed Parametes : Orbit/Clock IGS Final, ERP IGS Final
・Estimated Parameters : Sta Position, Sta Clock, Tropos ZTD/Gradients
・Min Elevation : 10deg
・Tropospheric Model : Saastamoinen
・Tropospheric Mapping Function : NMF
・Tropospheric Gradient Model : Linear
・Ocean Loading : GOTIC2(NAO99.b)
・Receiver Antenna PCV : igs_01.pcv
・Helmert Transformation Correction : on

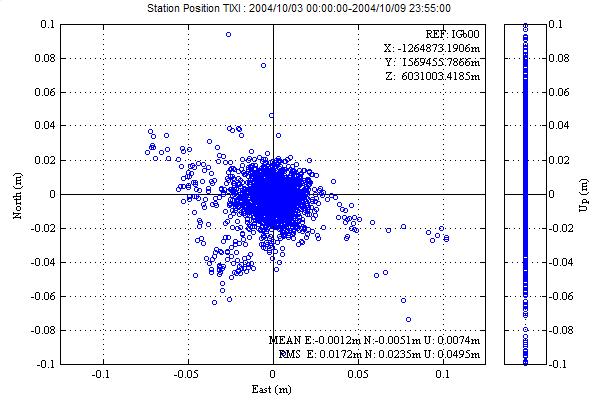

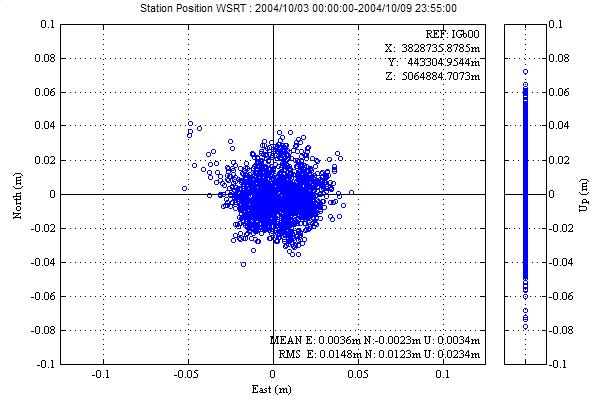

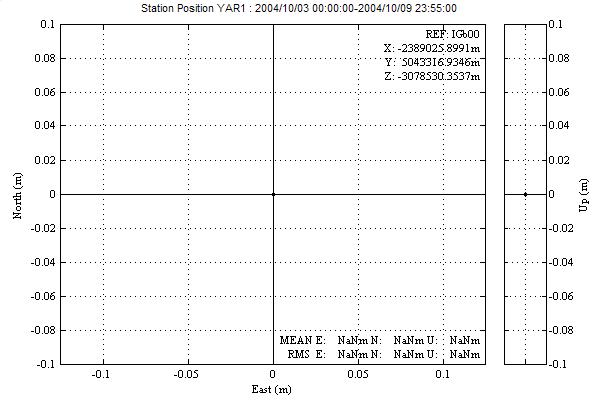

観測局位置誤差プロット (水平/垂直)
Estimated Station Position Error Plot (Horizontal/Vertical)

ALGO ALIC ARTU ASC1 AUCK BAHR BILI BOR1 BRUS CAS1 CEDU CHAT CHUR CRO1 DARW
DAV1 DRAO DUBO FLIN FORT GLSV GODE GOLD GOUG GRAS GRAZ GUAM HOB2 HOFN HRAO
IRKT JAB1 JOZE KARR KELY KERG KIT3 KOUR KSTU LAMA LHAS LPGS MALI MAS1 MATE
MAW1 MCM4 MDO1 MKEA NICO NKLG NLIB NOUM NRC1 NYAL OHI2 ONSA PERT PETP PIE1
POL2 POTS RBAY RIOG SANT SCH2 STJO SYOG THTI THU3 TIDB TIXI TOW2 TRAB TSKB
UNSA URUM VESL VILL WES2 WSRT WTZR YAR1 YELL ZIMM

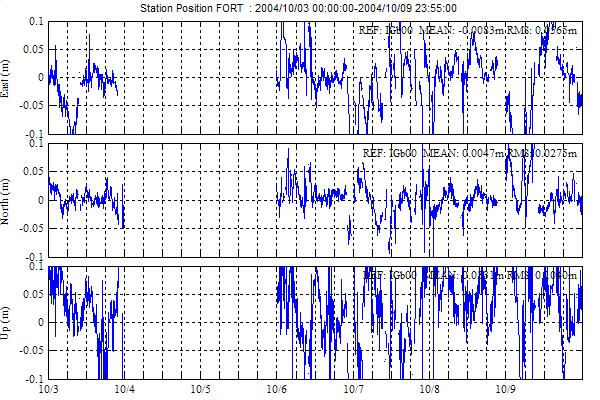

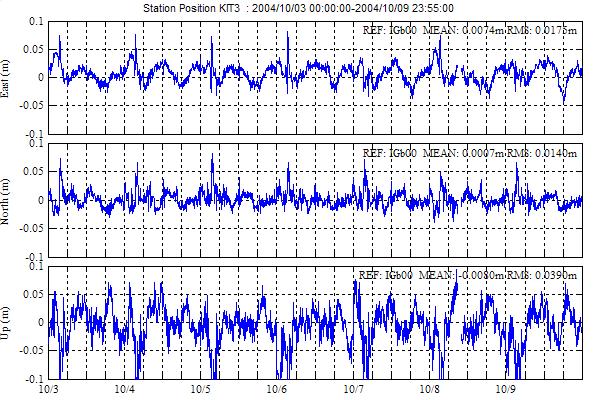

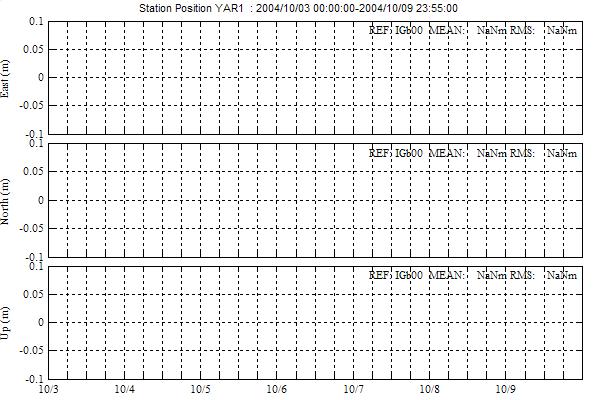

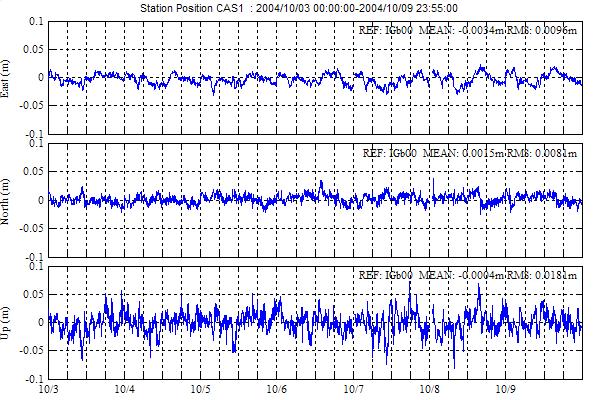

観測局位置誤差時間変動
Estimated Station Position Error Time Variation

ALGO ALIC ARTU ASC1 AUCK BAHR BILI BOR1 BRUS CAS1 CEDU CHAT CHUR CRO1 DARW
DAV1 DRAO DUBO FLIN FORT GLSV GODE GOLD GOUG GRAS GRAZ GUAM HOB2 HOFN HRAO
IRKT JAB1 JOZE KARR KELY KERG KIT3 KOUR KSTU LAMA LHAS LPGS MALI MAS1 MATE
MAW1 MCM4 MDO1 MKEA NICO NKLG NLIB NOUM NRC1 NYAL OHI2 ONSA PERT PETP PIE1
POL2 POTS RBAY RIOG SANT SCH2 STJO SYOG THTI THU3 TIDB TIXI TOW2 TRAB TSKB
UNSA URUM VESL VILL WES2 WSRT WTZR YAR1 YELL ZIMM

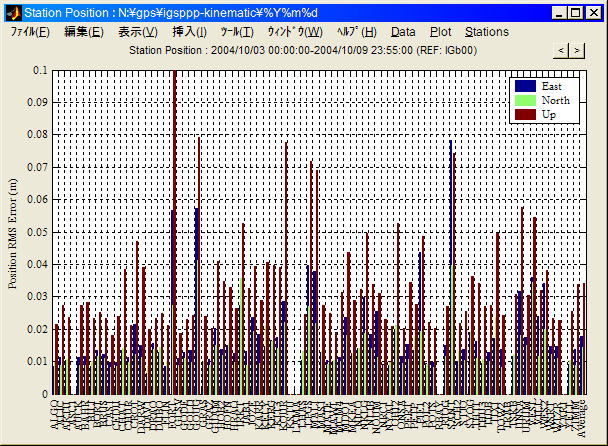

観測局位置RMS誤差
Estimated Station Position RMS Error

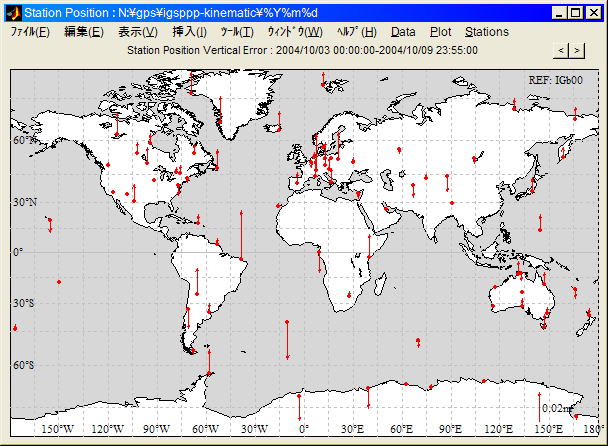

観測局位置平均誤差 (水平/垂直)
Estimated Station Position Mean Error (Horizontal/Vertical)

観測局位置誤差サマリ
Estimated Station Position Error Summary

                STATION POSITIONS : POSITION ERROR (wrt IGb00)

 TIME    : 2004/10/03 00:00:00-2004/10/09 23:55:00 GPST
                mean error (m)        rms  error (m)       repeatability (m)
            east   north     up     east   north   up     east   north   up
 -----------------------------------------------------------------------------
 ALGO    :-0.0015 -0.0055  0.0035  0.0084 0.0098 0.0214  0.0083 0.0082 0.0211
 ALIC    :-0.0009 -0.0038  0.0013  0.0111 0.0088 0.0273  0.0111 0.0080 0.0272
 ARTU    :-0.0025 -0.0015 -0.0030  0.0104 0.0105 0.0235  0.0101 0.0104 0.0233
 ASC1    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 AUCK    :-0.0019  0.0009  0.0045  0.0114 0.0089 0.0272  0.0112 0.0088 0.0268
 BAHR    : 0.0032 -0.0021 -0.0008  0.0116 0.0087 0.0283  0.0111 0.0085 0.0283
 BILI    :-0.0002 -0.0017  0.0086  0.0085 0.0100 0.0232  0.0085 0.0098 0.0216
 BOR1    : 0.0005 -0.0017  0.0014  0.0135 0.0117 0.0252  0.0135 0.0116 0.0252
 BRUS    :-0.0017  0.0013 -0.0035  0.0122 0.0110 0.0233  0.0121 0.0110 0.0230
 CAS1    :-0.0034  0.0015 -0.0004  0.0096 0.0081 0.0181  0.0090 0.0080 0.0181
 CEDU    : 0.0010 -0.0034  0.0054  0.0096 0.0084 0.0240  0.0095 0.0076 0.0234
 CHAT    :-0.0025  0.0025  0.0036  0.0134 0.0141 0.0383  0.0131 0.0139 0.0381
 CHUR    : 0.0028 -0.0002  0.0069  0.0113 0.0097 0.0212  0.0109 0.0097 0.0200
 CRO1    : 0.0053 -0.0018  0.0061  0.0214 0.0122 0.0470  0.0207 0.0121 0.0466
 DARW    :-0.0008 -0.0008  0.0087  0.0149 0.0112 0.0392  0.0149 0.0112 0.0382
 DAV1    :-0.0006  0.0043  0.0019  0.0064 0.0086 0.0198  0.0064 0.0074 0.0198
 DRAO    : 0.0068 -0.0022  0.0019  0.0155 0.0138 0.0233  0.0140 0.0137 0.0232
 DUBO    : 0.0012 -0.0092  0.0108  0.0127 0.0143 0.0247  0.0126 0.0109 0.0222
 FLIN    :-0.0010 -0.0046  0.0074  0.0086 0.0101 0.0211  0.0085 0.0090 0.0197
 FORT    :-0.0083  0.0047  0.0331  0.0565 0.0275 0.1040  0.0559 0.0271 0.0986
 GLSV    : 0.0037 -0.0016  0.0035  0.0110 0.0089 0.0187  0.0104 0.0088 0.0184
 GODE    :-0.0063 -0.0057 -0.0063  0.0129 0.0111 0.0231  0.0112 0.0095 0.0223
 GOLD    : 0.0074  0.0012  0.0013  0.0136 0.0098 0.0243  0.0114 0.0097 0.0242
 GOUG    :-0.0016  0.0087 -0.0249  0.0572 0.0412 0.0793  0.0572 0.0403 0.0753
 GRAS    : 0.0039 -0.0022  0.0115  0.0097 0.0101 0.0240  0.0089 0.0098 0.0210
 GRAZ    : 0.0022 -0.0014  0.0086  0.0107 0.0089 0.0204  0.0104 0.0088 0.0184
 GUAM    : 0.0012 -0.0038  0.0109  0.0203 0.0151 0.0408  0.0203 0.0146 0.0394
 HOB2    : 0.0011  0.0013  0.0089  0.0138 0.0119 0.0348  0.0137 0.0118 0.0337
 HOFN    : 0.0064 -0.0051  0.0129  0.0151 0.0155 0.0327  0.0136 0.0146 0.0301
 HRAO    : 0.0025 -0.0024  0.0034  0.0125 0.0098 0.0265  0.0123 0.0095 0.0262
 IRKT    : 0.0020 -0.0042 -0.0031  0.0274 0.0356 0.0526  0.0274 0.0353 0.0525
 JAB1    :-0.0043  0.0032 -0.0046  0.0130 0.0088 0.0327  0.0123 0.0082 0.0324
 JOZE    : 0.0048 -0.0019  0.0184  0.0235 0.0193 0.0394  0.0230 0.0192 0.0348
 KARR    :-0.0014 -0.0020  0.0006  0.0183 0.0095 0.0289  0.0183 0.0093 0.0288
 KELY    :-0.0018 -0.0045  0.0181  0.0145 0.0211 0.0404  0.0144 0.0206 0.0361
 KERG    : 0.0008  0.0022 -0.0046  0.0166 0.0163 0.0396  0.0166 0.0162 0.0393
 KIT3    : 0.0074  0.0007 -0.0080  0.0175 0.0140 0.0390  0.0158 0.0140 0.0381
 KOUR    : 0.0054  0.0070  0.0043  0.0285 0.0222 0.0776  0.0279 0.0211 0.0775
 KSTU    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 LAMA    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 LHAS    :-0.0015 -0.0093  0.0016  0.0105 0.0131 0.0246  0.0103 0.0091 0.0246
 LPGS    : 0.0027 -0.0065  0.0062  0.0397 0.0270 0.0717  0.0397 0.0262 0.0714
 MALI    : 0.0076 -0.0076  0.0162  0.0379 0.0219 0.0689  0.0371 0.0205 0.0670
 MAS1    :-0.0025 -0.0010  0.0019  0.0128 0.0131 0.0272  0.0126 0.0130 0.0271
 MATE    : 0.0019 -0.0018  0.0100  0.0104 0.0091 0.0247  0.0102 0.0090 0.0226
 MAW1    :-0.0038  0.0039  0.0016  0.0100 0.0105 0.0191  0.0092 0.0097 0.0190
 MCM4    :-0.0040 -0.0009 -0.0022  0.0113 0.0101 0.0315  0.0106 0.0100 0.0314
 MDO1    : 0.0038  0.0037  0.0111  0.0237 0.0181 0.0437  0.0233 0.0177 0.0422
 MKEA    : 0.0029  0.0007 -0.0081  0.0125 0.0126 0.0289  0.0121 0.0126 0.0277
 NICO    :-0.0003 -0.0018 -0.0034  0.0139 0.0140 0.0322  0.0139 0.0139 0.0320
 NKLG    : 0.0160  0.0006 -0.0138  0.0297 0.0187 0.0494  0.0250 0.0187 0.0475
 NLIB    :-0.0002 -0.0051  0.0002  0.0185 0.0140 0.0339  0.0185 0.0130 0.0339
 NOUM    :-0.0028 -0.0050 -0.0056  0.0255 0.0112 0.0310  0.0254 0.0100 0.0305
 NRC1    : 0.0004 -0.0033  0.0053  0.0090 0.0089 0.0228  0.0090 0.0082 0.0222
 NYAL    :-0.0009 -0.0062  0.0090  0.0087 0.0097 0.0208  0.0087 0.0075 0.0188
 OHI2    :-0.0067  0.0023  0.0159  0.0197 0.0211 0.0528  0.0186 0.0210 0.0503
 ONSA    : 0.0004 -0.0027  0.0018  0.0116 0.0096 0.0201  0.0116 0.0092 0.0200
 PERT    : 0.0015 -0.0058 -0.0009  0.0153 0.0107 0.0343  0.0152 0.0090 0.0343
 PETP    :-0.0042 -0.0043  0.0065  0.0134 0.0177 0.0276  0.0127 0.0172 0.0268
 PIE1    : 0.0085  0.0023  0.0006  0.0436 0.0192 0.0486  0.0428 0.0191 0.0486
 POL2    : 0.0019 -0.0019  0.0029  0.0094 0.0091 0.0222  0.0093 0.0089 0.0220
 POTS    : 0.0028 -0.0006  0.0111  0.0097 0.0083 0.0202  0.0093 0.0083 0.0169
 RBAY    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 RIOG    : 0.0050 -0.0009 -0.0025  0.0151 0.0116 0.0270  0.0142 0.0115 0.0269
 SANT    : 0.0034 -0.0000 -0.0135  0.0784 0.0397 0.0744  0.0783 0.0397 0.0731
 SCH2    :-0.0012 -0.0094  0.0060  0.0102 0.0132 0.0219  0.0101 0.0093 0.0211
 STJO    : 0.0002 -0.0003  0.0131  0.0138 0.0104 0.0253  0.0138 0.0104 0.0217
 SYOG    : 0.0007  0.0012 -0.0132  0.0191 0.0193 0.0363  0.0191 0.0193 0.0339
 THTI    :-0.0041  0.0030  0.0006  0.0163 0.0109 0.0341  0.0157 0.0105 0.0341
 THU3    :-0.0003 -0.0053  0.0151  0.0095 0.0108 0.0271  0.0095 0.0094 0.0225
 TIDB    : 0.0005 -0.0010  0.0041  0.0128 0.0099 0.0273  0.0128 0.0099 0.0270
 TIXI    :-0.0012 -0.0051  0.0074  0.0172 0.0235 0.0495  0.0172 0.0229 0.0490
 TOW2    :-0.0049  0.0001  0.0086  0.0138 0.0081 0.0242  0.0129 0.0081 0.0227
 TRAB    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 TSKB    :-0.0023 -0.0075  0.0091  0.0115 0.0121 0.0307  0.0112 0.0096 0.0293
 UNSA    : 0.0060 -0.0043  0.0176  0.0316 0.0179 0.0575  0.0310 0.0174 0.0548
 URUM    : 0.0071 -0.0047 -0.0105  0.0173 0.0149 0.0304  0.0158 0.0142 0.0286
 VESL    : 0.0060  0.0054 -0.0164  0.0359 0.0344 0.0543  0.0354 0.0339 0.0518
 VILL    : 0.0008  0.0027  0.0070  0.0238 0.0117 0.0318  0.0238 0.0114 0.0310
 WES2    :-0.0124 -0.0010 -0.0023  0.0340 0.0200 0.0381  0.0317 0.0199 0.0380
 WSRT    : 0.0036 -0.0023  0.0034  0.0148 0.0123 0.0234  0.0144 0.0121 0.0231
 WTZR    : 0.0019 -0.0016  0.0064  0.0146 0.0110 0.0228  0.0145 0.0109 0.0219
 YAR1    :    NaN     NaN     NaN     NaN    NaN    NaN     NaN    NaN    NaN
 YELL    : 0.0021 -0.0036  0.0146  0.0091 0.0103 0.0255  0.0088 0.0096 0.0209
 ZIMM    :-0.0014  0.0002  0.0248  0.0136 0.0088 0.0338  0.0136 0.0088 0.0230
 -----------------------------------------------------------------------------
 average : 0.0008 -0.0015  0.0037  0.0179 0.0142 0.0343  0.0174 0.0137 0.0330
 median  : 0.0005 -0.0017  0.0035  0.0136 0.0116 0.0283  0.0135 0.0109 0.0272

                            TRANSFORMATION PARAMETERS
              dx(m)    dy(m)    dz(m)   Rx(mas)  Ry(mas)  Rz(mas) scale(ppb)
 -----------------------------------------------------------------------------
 2004/10/03:  0.0032  -0.0009  -0.0015   0.0138  -0.0428   0.0254   2.4649
 2004/10/04:  0.0030   0.0038  -0.0020   0.0489  -0.0587   0.0276   2.3733
 2004/10/05:  0.0009   0.0036  -0.0013   0.0504  -0.0337   0.0071   2.3246
 2004/10/06:  0.0021   0.0039  -0.0001   0.0197  -0.0423   0.0258   2.2248
 2004/10/07:  0.0023   0.0021  -0.0022   0.0448  -0.0195   0.0149   2.4459
 2004/10/08:  0.0022   0.0031  -0.0012   0.0445  -0.0207   0.0434   2.4773
 2004/10/09: -0.0010   0.0022  -0.0034   0.0310  -0.0051  -0.0362   2.6180
