GPS Precise Analysis Software GpsTools: Overview

Features | Functional Blocks | Processing Flow | References


- Precise analysis with dual-frequency GPS/GNSS carrier-phase measurements
- Parameter estimation by Extended Kalman Filter/Smoother
- Estimation of receiver position, satellite orbit/clock, receiver clock, tropospheric parameters etc.
- Embedded precise measurement models and satellite motion models
- GUI tools to set parameter settings, execute analysis, plot results and for many utilities
- Common MATLAB libraries for user application programs

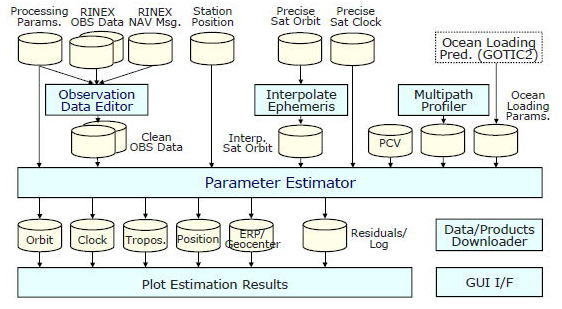

Functional Blocks

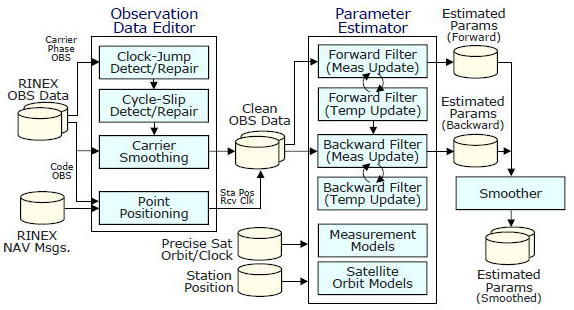

Processing Flow


T.Takasu and S.Kasai, Development of Precise Orbit/Clock Determination Software for GPS/GNSS, the 49th Space Sciences and Technology Conference, Hiroshima, Japan, 2005 (in Japanese)
